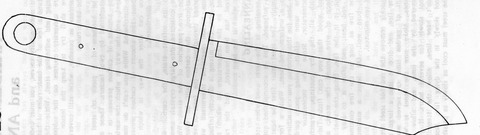

Please note theat in the original book, there was a full scale diagram of the suggested knife shape to the right of the text. This has been reproduced in smaller form at the end of the article, but the original sized full scale drawing can be downloaded here (Knife shape PDF)f or use as a template.
At right we have given a full size tracing of the knife described in this book. By preference we feel that this shape is too large for normal work. However, the size was chosen as being the best for introducing the basic principles of knife making. Our suggestion is that you make a reasonably large knife first, as it is easier to work on. Having successfully completed a large knife, one can then move to the smaller, and more intricate knife shapes.
We prefer a blade length of between 100mm to 150mm, with a width of about 18mm. Should you wish to try your hand at this size first, please read the full details first, as it may save you a lot of work and possible problems.
Note that the handle is narrower than the blade. It has been stepped in on both sides to prevent the handguard from slipping forward. The handguard cannot move backward, as it is secured by the two handle ‘scales’ or plates. While there are other ways of making, and fixing, handguards, this is a simple and foolproof way that works.
The large hole (1/2 inch) at the end of the handle can take a lanyard or cord. The size chosen is one into which a spent cartridge case will just fit. This will make a neat, brass lined hole, and helps secure the plates. You may choose to disregard this hole, and just fit another rivet if you wish.
If you wish you may just keep to the size shown, and just bend the shape slightly. If you do this, we suggest that you still keep to the basic points described above. That was you will still be able to work to the directions given, while making a more personalised knife.
